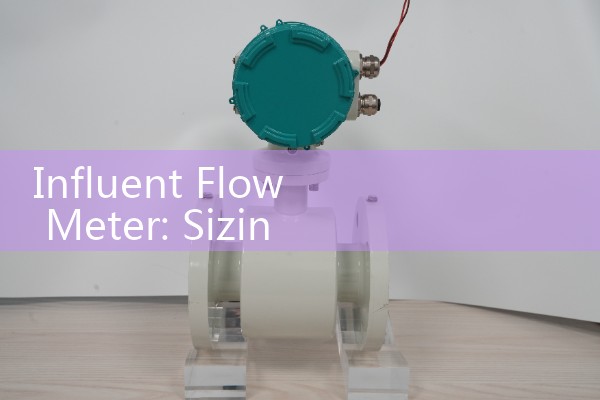

Influent Flow Meter: Sizing Municipal Waste System Intake Probes
Quick Answer: For measuring raw municipal wastewater at the plant intake, a full‑bore electromagnetic flow meter almost always outperforms an insertion probe. Size the meter body to match the existing pipe diameter and keep flow velocity between 1 and 3 m/s. Silver Automation Instruments supplies welded full‑bore magmeters with hard rubber liners and Hastelloy electrodes that survive grit, grease, and H2S without the clogging risk of small‑stem intake probes.
Why Full‑Bore Meters Beat Insertion Probes for Influent
Municipal raw sewage is not clean water. Most plants in Thailand, Vietnam, and Colombia see 200–400 mg/L of total suspended solids at the headworks. Fibers, rags, and plastic strips wrap around anything that sticks into the flow. A probe stem as thin as 20 mm becomes a collection point within days. Once the stem builds a rag tail, the velocity profile shifts and the meter reading drifts. Often operators do not notice until the daily totalized volume no longer matches the wet‑well drawdown. A full‑bore magnetic flow meter keeps the inside diameter flush with the pipe wall. There is no stem, no dead leg, and no opportunity for snagging. In practice, plants that replace a ±5% insertion probe with a ±0.5% full‑bore magmeter reduce their unaccounted‑for water number by 1.5–3% of total inflow.
Sizing the Meter Body Based on Pipe Diameter and Velocity
Influent pipes at municipal plants in the 10–50 MLD range commonly run DN300, DN400, DN500, or DN600. A full‑bore electromagnetic flow meter is sized exactly to the pipe ID. Engineers often ask if they can drop a size to save cost. Here is the thing: you can only reduce the meter diameter if the velocity stays above 0.5 m/s at minimum night flow. For a DN500 pipe with a diurnal minimum of 120 m³/h, velocity is 0.17 m/s. That is below the 0.5 m/s threshold most magmeters need for stable readings. In that case you must keep the meter DN500. If the customer pushes for a smaller meter, a concentric reducer set can bring DN500 down to DN400, raising velocity to 0.27 m³/h—still marginal. We normally recommend staying at line size for headworks meters. This avoids extra headloss and Civil Works changes.
If an insertion‑style intake probe is the only option because the pipe cannot be cut, the probe immersion depth must hit the mean velocity point. For turbulent flow in a full pipe, that point sits at about 0.12 × D from the pipe wall. A DN600 pipe needs a probe tip roughly 72 mm into the stream. Many generic probes use a fixed immersion of 50 mm regardless of pipe size. That misses the average velocity by a wide margin. Silver Instruments sets the insertion depth to 0.12D for every wastewater probe order when the customer supplies the exact pipe ID and wall thickness.
Material Selection for Raw Sewage
The influent channel is not sweet water. Sludge, sand, and occasional pH swings from industrial dumps eat standard neoprene liners quickly. We specify a hard rubber liner as the baseline for municipal intake. EPDM works up to 80°C, but raw sewage rarely exceeds 35°C in tropical countries. Electrodes must deal with H2S off‑gas and chlorides. Hastelloy C‑276 covers 90% of municipal intake applications. In coastal plants where brackish infiltration pushes chloride above 5,000 mg/L, a titanium electrode is safer. The grounding ring should be the same material as the electrode or 316L stainless if the pipe is metallic. Silver Instruments stocks hard rubber + Hastelloy as a pre‑engineered combination for DN50 to DN1200, so lead time stays at 2–3 weeks.
Straight Run and Installation Requirements
Most headworks meters sit downstream of a bar screen and a grit chamber. The flow at that point still has some swirl if the channel
The meter must stay full at all flows. A downward‑sloping invert or a dropped section in the pipe can create an air pocket. Even a small air bubble passing the electrodes causes the output to spike. Drop‑structures need a back‑pressure weir or a gooseneck to keep the pipe flooded. Silver Instruments field service teams have seen this on customer sites many times. The fix is almost always a simple pipe elevation correction, not a meter replacement.
Silver Instruments Recommended Model for Municipal Intake
The standard model we ship for headworks applications is the SIL-EMF series with integral or remote converter. The remote option is better when the meter pit floods during monsoon season. Outputs include 4–20 mA HART, a scalable pulse, and RS485 Modbus RTU. Accuracy is 0.5% of reading from 0.5 to 10 m/s. The empty‑pipe detection electrode prevents the totalizer from running when the line drains. For small plants that handle less than 5 MLD, we often supply a DN150 or DN200 SIL-EMF with compact transmitter and a local LCD. The meter ships with a factory calibration certificate traceable to an ISO 17025 lab.
Frequently Asked Questions About Influent Probe Sizing
Can I use an insertion probe for raw sewage flow measurement? A full‑bore meter is more reliable because rags and fibers collect on probe stems. However, if cutting the pipe is impossible and the plant can accept a ±3–5% uncertainty, we provide a Silver Instruments insertion magmeter with 0.12D depth setting and a heavy‑duty scraper ring. The key is weekly visual inspection.
What is the minimum straight pipe needed for an electromagnetic flow meter in a wastewater intake? We require 5D upstream and 2D downstream for a full‑bore design. After a pump or a partially open valve, increase upstream to 10D. For insertion probes, 10D upstream is the minimum.
What liner and electrode materials survive grit and H2S in wastewater? Hard rubber or EPDM liner with Hastelloy C‑276 electrodes handles typical municipal influent. If chloride exceeds 5,000 mg/L, switch to titanium electrodes.
How do I size the meter if the pipe is oversized for future flow? Do not reduce the meter diameter below what the minimum night flow can sustain. Concentric reducers let you install a smaller meter, but verify that velocity stays above 0.5 m/s at the lowest flow. Send us your minimum, normal, and peak flow data and we will run a velocity check.
Does Silver Instruments offer ATEX or Ex certification for wastewater meters? Most headworks areas are not zoned. When a plant needs Zone 2 or Zone 22 certification, we supply the same SIL-EMF with ATEX / IECEx certification. The price adder is small because we stock ATEX‑approved terminal boxes and cable glands.
Every week we help engineers size influent flow meters for municipal wastewater plants across Southeast Asia, the Middle East, and Latin America. Send us your pipe size (DN), maximum and minimum flow rate, pressure (bar), temperature (°C), and sludge description. We will return a pre‑sized proposal with a dimensional drawing the same day. Email [email protected], call +86-25-68650347, or message us on WhatsApp +86-25-52155837. WeChat users can reach us at +86 15365082610. No generic contact form. One email with the line data and you get a complete technical offer.
