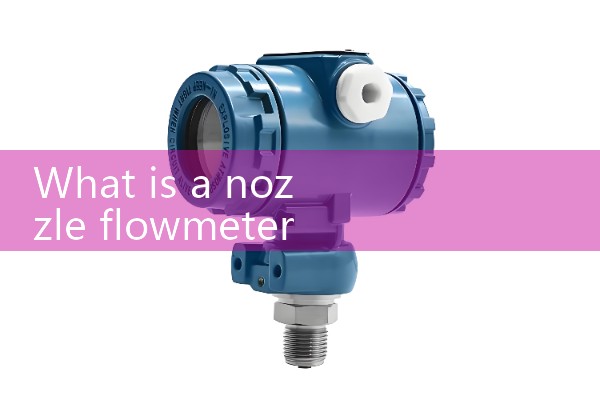

1. What is a nozzle flowmeter?
A nozzle flowmeter is a differential pressure generating device for measuring flow in a closed loop. It can be used in conjunction with various differential pressure gauges or transmitters to measure the flow of various fluids in pipelines.. The standard nozzle throttling device is used in conjunction with differential pressure transmitters to measure the flow rates of liquids, vapors, and gases, and is widely used in sectors such as petroleum, chemical, metallurgical, power, and light industry. Compared with orifice flow meters, nozzle flow meters have smaller pressure losses, thus saving energy, being more sturdy and durable, and suitable for high-temperature and high-pressure fluids. Lets further understand the relevant knowledge of nozzle flowmeter. The nozzle flowmeter can be used to measure the flow rate of high temperature and high pressure liquids due to its more expensive structural material compared to orifice plates. Under the same measurement conditions, nozzle flow meters have higher mechanical strength, can accommodate fluid flow rates exceeding 60% of the volume, and can measure the flow velocity of fluids containing solid particles, with less interference than orifice plates with the same aperture in front of them. Suitable for high-speed fluid flow. In addition to single nozzles, Hitrol also provides nozzles for side welding short pipes (upstream 4D and downstream 2D). Its type fully complies with ISO-5167 (including ISA1932 nozzle), Venturi nozzle, ASME MFC-3M, and ASME PTC-6 standards.
2. Will the flowmeter record the flow rate value after the nozzle is blocked?
Whether the flowmeter records the flow rate value after the nozzle is blocked de
_600x400.jpg)
1. Installation of flowmeter upstream of nozzle 1 This type of flowmeter monitors the total fluid flow in the upstream pipeline. As long as the upstream fluid supply equipment (such as pumps and compressors) is still running, there will be fluid flow in the pipeline. The flowmeter will collect and output the flow rate value of the bridge leg normally. Only the reading at this time represents the fluid throughput of the upstream pipeline, not the actual effective flow rate through the nozzle. The flowmeter will only stop recording the flow rate when the upstream pipeline is completely pressurized and the fluid is completely cut off due to nozzle blockage (such as pump shutdown or upstream main valve closure).
2. When the flowmeter is installed downstream of or integrated with the nozzle.
1 A downstream flow meter that directly detects the flow rate of the nozzles sensitive lift outlet, with the fluid passing through the nozzle as the detection object. After the nozzle is blocked, almost no fluid flows through the flow meter, and no effective flow record is generated. It usually displays 0 or retains the last reading before blockage. 2. The flow sensor integrated inside the nozzle directly binds its detection logic to the fluid passing status of the nozzle. If there is no fluid flowing through the sensor after the nozzle is blocked, it will also output the effective flow value without laughing.3. What is a nozzle flowmeter?
The nozzle flowmeter is a differential pressure generating device for measuring flow rate, which can be used in conjunction wi
